Introduction
processing efficiency：350mm per minute Efficiency improvement：150%-300% Smooth finish (BTA)：0.4μm

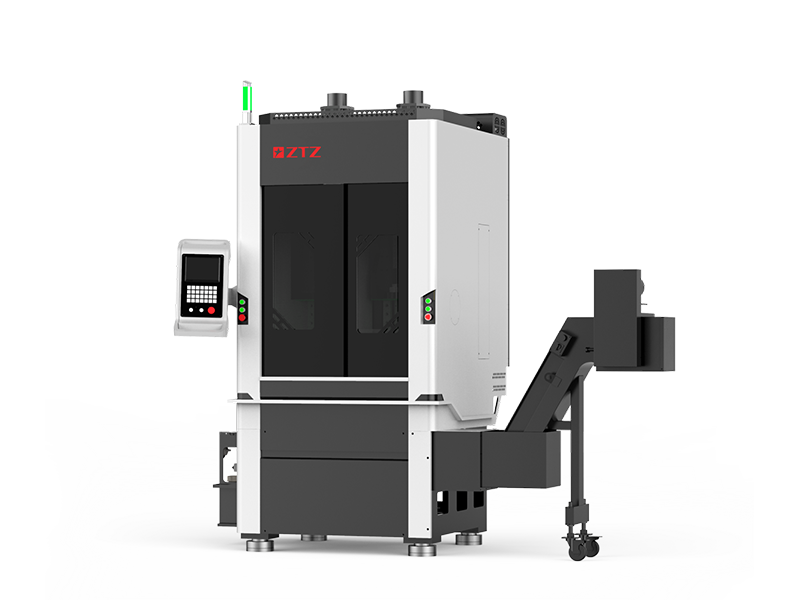

We have creatively developed an inverted deep hole drilling machine, which has the characteristics of smooth chip removal, good tool rigidity, and high processing efficiency for workpieces with hole depths below 700mm.
Features
Drill from bottom to top for smoother chip removal
The innovative inverted structure allows the workpiece to be clamped and fed from bottom to top, making the chip removal process smoother and increasing machining efficiency by multiple times.
Diversified cutting tools for more flexible adaptation
Various cutting tools such as gun drills, U-drills, BTA drills, nesting drills, and oil hole drills can be flexibly selected according to different requirements.
Up to four workstations for easier processing
We offer four types of machines, including single station, double station, three station, and four station, to cater to different workpieces and customer needs, making machining easier.
Deep drilling without eccentricity, with a smoother surface
The workpiece is clamped and fixed by hydraulic control, resulting in higher machining consistency and better inner hole smoothness.
Parameter
| Name and Model | Processing diameter mm | Machining length mm | Workstation | roughness μm | Garden pillar degree mm |
|---|---|---|---|---|---|
| ZS 300-500L/1-12 | 1-12 | 300-500 | 1 | 0.4-3.2 | 0.1/10 |
| ZS 300-500L/10-20 | 10-20 | 300-500 | 1 | 0.4-3.2 | 0.1/10 |
| ZS 300-500L/18-30 | 18-30 | 300-500 | 1 | 0.4-3.2 | 0.1/10 |
| ZS 300-500L/25-45 | 25-45 | 300-500 | 1 | 0.4-3.2 | 0.1/10 |
| ZS 300-500L2/1-12 | 1-12 | 300-500 | 2 | 0.4-3.2 | 0.1/10 |
| ZS 300-500L2/10-20 | 10-20 | 300-500 | 2 | 0.4-3.2 | 0.1/10 |
| ZS 300-500L3/1-12 | 1-12 | 300-500 | 3 | 0.4-3.2 | 0.1/10 |
| ZS 300-500L3/10-20 | 10-20 | 300-500 | 3 | 0.4-3.2 | 0.1/10 |
| ZS 300-500L3/18-30 | 18-30 | 300-500 | 3 | 0.4-3.2 | 0.1/10 |
| ZS 300-500L3/25-45 | 25-45 | 300-500 | 3 | 0.4-3.2 | 0.1/10 |
| ZS 300-500L4/1-12 | 1-12 | 300-500 | 4 | 0.4-3.2 | 0.1/10 |
| ZS 300-500L4/10-20 | 10-20 | 300-500 | 4 | 0.4-3.2 | 0.1/10 |
