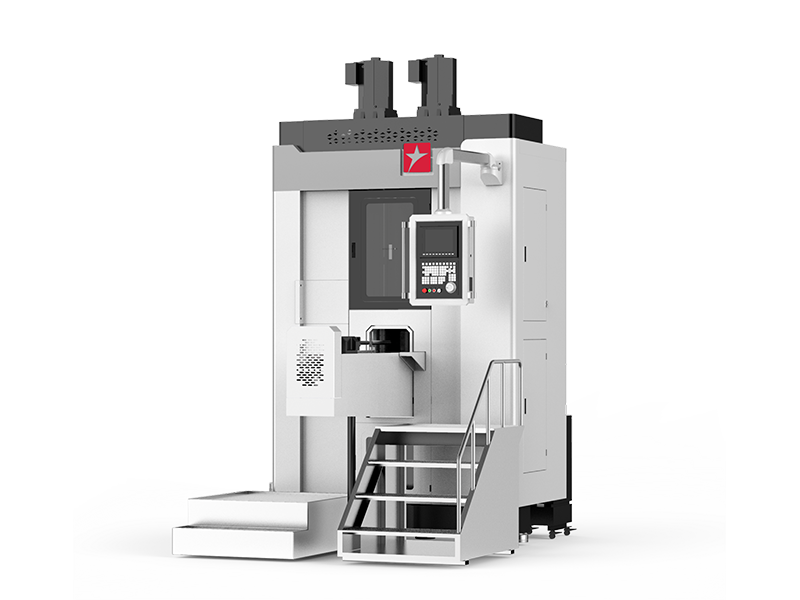

CZL-36NCS vertical dual servo CNC gear hobbing machine

Machining accuracy：GB-5 level  Processing cycle time：4-15S  modulus：2.0mm

We have formed an integrated technical system that includes the manufacturing of gear hobbing machines, research on gear hobbing processes, and design and manufacturing of gear hobbing dies. We are committed to providing a complete set of solutions for various gear hobbing processes.

Multi stage digit control rubbing teeth

Fully CNC controlled, the machine tool can complete gear hobbing with different parameters at multiple positions on the same workpiece in one clamping operation.

Cumulative CNC adjustment of tooth pitch and pitch

It can easily compensate for the symmetry error of the cutting tool, completely solving the difficulties of manual and tedious mechanical or gasket adjustment in the past, and can achieve better cumulative accuracy of tooth pitch and pitch.

Optional vertical/horizontal structure

The main sliding table of the vertical gear hobbing machine performs vertical symmetrical motion, which is beneficial for chip removal and workpiece cooling, reducing guide rail wear and minimizing footprint. Horizontal gear hobbing machine sliding combination machine bolt column connection increases the overall rigidity and stability of the machine tool.

Optional hydraulic/servo drive

Servo drive saves 70% energy compared to hydraulic drive; High processing accuracy and simple debugging. Hydraulic costs are lower.
